Filtration System



Standard Types of Industrial filters



Special application of Industrial filters





Mechzeal manufactures industrial water filters in commercial, institutional, seawater, tap, brackish and industrial water sectors that remove the following:

• Sediments & turbidity
• Iron and manganese
• Unpleasant tastes
• Odors
• Suspended particles
• Unwanted color
• Chlorine



Filtration is a critical component of the industrial water purification process. Water is pumped through various types of filtration products; these filters then trap and remove the contaminants as water passes through them. From sand filters, to screen filters and everything in between Mechzeal offers a variety of filtration equipment for your industrial applications.

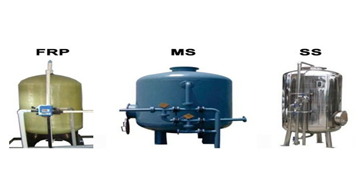

By using stainless steel, epoxy coated steel or FRP tanks (depending on the need), our industrial water filters can be used in a variety of applications including municipal, institutional and industrial water filtration applications, and in nearly any climate or weather condition.
With the utilization of the correct pressure tanks, valves and accurate filter media choices, Our equipment can be designed to operate manually, semi- or fully-automatically and requires very limited technical knowledge. Multi-media water filter system are a significant upgrade from single-media filters. This is primarily due to improved filter bed action based on the innovative use and selection of filter media. Multi-media filtration allows delivery of high quality filtered water at much faster flow rates, as compared to a conventional sand filter.In a conventional sand filter, lighter and finer sand particles are found at the top of the filter bed, and coarser, heavier sand particles remain at the bottom after backwashing. Filtration takes place in the top few inches of the filter bed.

A multi-media filter is backwashed in the same manner as a sand filter, using reverse or upward flow of water through the filter bed. The various layers of media retain their stratification because each material has a different density.

All steel and stainless steel industrial water filters include pressure tanks constructed of high quality welded steel designed for 6 kg/cm2 working pressure and tested for 10 kg/cm2. Standard pressure tanks are equipped with inlet and outlet connections, top mounted loading port (either handhole or manhole), and a side filter media removal fitting. Due to the corrosive nature of other filter media types, all carbon steel tanks are epoxy lined.

We design our filters using the correct pressure tanks, automatic or manually operated valves, filter media choice and operating conditions, our industrial water filtration solutions meet most water filtration requirements. The equipment operates in a manual using manual valves, semi- or fully-automatic using fully automated PLC or controller, and requires requiring very limited technical knowledge. Backwash initiation can be through a timer, external signal from a central control system or using a differential pressure switch.
